Synthesis, Characterization, and Molecular Docking Against a Receptor Protein FimH of Escherichia coli (4XO8) of Thymidine Derivatives

Journal of the Mexican Chemical Society, vol. 65, no. 2, 2021

Sociedad Química de México A.C.

Asraful Alam

University of Chittagong, Bangladesh

Mohammed Anowar Hosen

University of Chittagong, Bangladesh

Anowar Hosen

University of Dhaka, Bangladesh

Yuki Fujii

Nagasaki International University, Japan

Yasuhiro Ozeki

Yokohama City University, Japan

Sarkar Mohammad Abe Kawsar *

University of Chittagong, Bangladesh

Received: 22 October 2020

Accepted: 25 January 2021

Abstract: Thymidine is known as a progenitor of nucleosides that have significant biological activity. The widening importance of nucleoside derivatives as unrivaled potential antimicrobial and therapeutic agents has attracted contemplation to the synthesis of thymidine derivatives. In the present study, thymidine was treated with various acyl halides to produce 5ʹ-O-acyl thymidine derivatives by direct acylation method with an excellent yield. To obtain newer products for antimicrobial assessment studies, the 5ʹ-O-thymidine derivatives were further modified into three series of 3ʹ-O-acyl thymidine derivatives containing a wide variety of functionalities in a single molecular framework. The chemical structures of the newly synthesized compounds were elucidated by analyzing their physicochemical, elemental, and spectroscopic data. Additionally, the X-ray powder diffraction (XRD) of these acylated products was studied. For the computational investigation, we have selected eight synthesized thymidine derivatives, which have notable antibacterial activity, and performed molecular docking against bacterial lectin protein FimH of Escherichia coli (4XO8) to suggest a potent inhibitor against bacterial function. Molecular docking was performed using AutoDock Vina to calculate the binding affinities and interactions between the antibacterials and the FimH E. coli (4XO8). It was found that the selected thymidine derivatives have strongly interacted mainly with Tyr48, Tyr137, Asp140, Arg98, Gln133, Phe1, Asn23, Asn135, Lys76, Asp47, Ile13, and Ile52 residues. In silico pharmacokinetic properties were also predicted to search their absorption, metabolism, excretion, and toxicity. This computational examination showed that these thymidine derivatives might be used as potential inhibitors against the promising antibacterial activity for future studies.

Keywords: Thymidine, synthesis, Escherichia coli, molecular docking, DFT, inhibitor, lectin protein (FimH).

Resumen: Se prepararon varios derivados 5ʹ-O-acil timidínicos por acilación directa con rendimientos excelentes que fueron transformados en tres series de derivados 3ʹ-O-acil timidínicos con una amplia variedad de funcionalidades. Estos compuestos fueron la base de un estudio de docking dirigido a la lectina bacteriana FimH de Escherichia coli (4XO8) con la finalidad de proponer un inhibidor contra esta función bacteriana.

Palabras clave: Acilación de Timidina, Docking, lectina bacteriana (FimH), inhibidor, DFT.

Abbreviations

DFT: Density Functional Theory QM: Quantum Mechanical LYP: Lee, Yang and Parr´s

Introduction

Nucleoside derivatives (NDs) have proven to be a fruitful field for drug discovery [1]. Due to the ubiquitous nature of NDs in biological settings, modifications in their structures can potentially lead to powerful biological effects. Much research has been conducted in this field producing many medicinally important compounds. NDs have proven particularly effective as anticancer agents [2,3]. These derivatives have also been successful in producing antiviral therapeutics [4,5].

Some of the most effective antiviral agents currently in use are purine or pyrimidine. Thymidine (Fig. 1), structurally known as deoxythymidine is a pyrimidine-based nucleoside that constitutes a major part of one of the four nucleotides in DNA and is listed as a chemical teratogen [6]. Modification of the hydroxyl (-OH) group at 3՛ and 5՛ position increases the activity of thymidine derivatives and bring about some lifesaving antiviral and antibacterial drug. Azidothymidine (AZT) is one of the most popular thymidine derivatives (antiviral drugs) in which 3՛ hydroxyl (-OH) of thymidine is modified by an azide group and now it’s used worldwide for the treatment of HIV infection [7]. AZT suppresses the mode of reverse transcription, a ticklish phase in the life cycle of the virus. Edoxudine is another antiviral drug of thymidine, strongly working against herpes simplex virus [8,9,10]. Moreover, thymidine plays a key role in cell biology to synchronize cells. Thymidine analog Bromodeoxyuridine is globally used to identify the proliferating of cells in living tissues. Thymidine is also catabolized to find out TP-expressing tumor xenografts [11]. The modified compounds exhibited a broad-spectrum biological activity. For example, zidovudine, [12] with the azido group at the 3ʹ position, is used for the treatment of HIV. Thymidine derivatives such as stavudine and zalcitabine are used in the treatment of HIV infections and tumors [13]. Hence, modifications in the sugar moiety of NDs have resulted in a variety of effective therapeutic applications.


Fig. 1
Structure of the thymidine (1).

Thus, we attempted to search for novel NDs with potent biological activity. Several efficient methods for selective modification were reported by chemists using numerous acylating agents and varying reaction conditions [14,15,16,17,18]. Various methods for acylation of carbohydrates and nucleosides have been developed and employed successfully [19,20,21]. Of these, the direct method is the most promising for the acylation of nucleosides [21].

FimH is a well-studied lectin, which is used by bacteria to adhere to glycosylated surfaces, such as cells [22]. Many natural, as well as synthetic mannosidic ligands of FimH, have been developed and examined for their inhibitory potencies [22]. Eosinophil cationic protein (ECP), also known as RNase 3, is an eosinophil secretion protein that plays a key role in innate immunity and displays antipathogen and proinflammatory activities. ECP has a high binding affinity for heterosaccharides, such as bacterial lipopolysaccharides and heparan sulfate found in the glycocalyx of eukaryotic cells [23]. ECP also belongs to the mammalian RNase A superfamily and its RNase activity is required for some of its biological properties [24]. Trp10 and Trp35 together with the adjacent stacking residue are critical for the damaging effect of ECP on mammalian cell lines. These residues are also crucial for the membrane disruption activity of ECP. Other exposed aromatic residues packed against arginine’s (Arg75-Phe76 and Arg121-Tyr122) and specific cationic amino acids (Arg101and Arg104) of ECP play a secondary role in the cell growth inhibition [23]. Again, residues Ile13, Ile52, Lys38, Lys76, Arg36, Arg98, and His15 are identified to be involved in the biological properties [23].

Computational chemistry is a popular tool to predict physicochemical, spectral, and biological properties of newly synthesized chemicals [25]. The prime aim of this study attempted to synthesize new biologically potent thymidine derivatives and investigate the binding affinities and interactions of antibacterial thymidine derivatives against the E. coli (4XO8) using computational tools to point out a potent inhibitor against bacterial function. Additionally, synthesized thymidine derivatives were optimized to minimize energy and some selected derivatives (having better antibacterial activity) were employed for molecular docking against bacterial protein FimH of E. coli (4XO8) to understand their nonbonding interactions, binding mode, and binding affinity as the first time. Moreover, to ensure the drug-like ability standard computational pharmacokinetic parameters in silico (ADMET) has been predicted.

Experimental

Materials and methods

Thin-layer chromatography (TLC) was performed on Kieselgel GF254 (Germany), and the chromatogram was visualized by spraying the plates with 1% H2SO4, followed by heating the plates at 150-200°C until coloration appeared. Melting points (mp) were determined on an electrothermal melting point apparatus. Evaporations were performed under diminished pressure on a Büchi rotary evaporator. The solvents used were of analytical grade and were purified using standard procedures. Infrared spectral analyses were recorded using a Fourier-transform infrared (FTIR) spectrophotometer (IR Prestige-21, Shimadzu, Japan) within 200-4000 cm-1 at the Department of Chemistry, University of Chittagong, Bangladesh. Mass spectra of the synthesized compounds were obtained by liquid chromatography-electrospray ionization tandem mass spectrometry in positive ionization mode. A Brucker advance DPX 400 MHz using tetramethylsilane as an internal standard was employed for recording the proton nuclear magnetic resonance (1H-NMR) spectra in CDCl3 (δ in ppm) at WMSRC, JU, Bangladesh. XRD patterns were obtained using an XRD-53 analyzer diffractometer (Rigaku, Japan) with a back monochromator and a Cu target and Kα (λ = 1.5406 nm) in 2θ=2-70° at the CARS, Dhaka University, Bangladesh. Column chromatography was performed using silica gel G60. CHCl3/CH3OH in different proportions was employed as the solvent system for TLC analyses. All reagents used were commercially available Sigma-Aldrich (Germany) and were used as received unless otherwise specified.

Synthesis

Over the past several years, our laboratory has been involved in the synthesis of nucleoside derivatives containing various acyl groups to explore their antimicrobial properties [26, 27].

Procedure for the synthesis of 5ʹ-O-(pivaloyl)thymidine (2)

A solution of thymidine (1) (200 mg, 0.82 mmol) having hydroxyl group(s) was dissolved in dry pyridine (approximately 3 ml). The solution was cooled to 0°C, and pivaloyl chloride (0.11 ml, 1.1 molar eq.) was added dropwise with continuous stirring. The reaction mixture was allowed to attain room temperature, after which 4-dimethylaminopyridine (DMAP, catalytic amount) was added. The mixture was further stirred for 5-6 h, and TLC (CHCl3/CH3OH = 4/1, v/v) indicated the presence of a faster moving product. Excess pivaloyl chloride was decomposed by adding approximately 3 ml of ice water. The organic product was extracted with chloroform (CHCl3, 3 × 10 ml), and this organic layer was washed successively with 5% HCl, saturated aqueous NaHCO3 solution, and brine. The organic layer was dried over MgSO4 and concentrated in a vacuum to obtain a residue. Chromatographic purification of the residue (elution with CHCl3/CH3OH) yielded the pivaloyl derivative (2) (82.7 mg) in the pure form as a crystalline solid, which was used in the next stage. White crystalline solid in 78.4% yield. mp: 66-68 °C, Rf= 0.52 (CHCl3/CH3OH = 4/1, v/v); FTIR (KBr) νmax 1690 (-CO), 3410~3535 (br) (-OH) cm-1; 1H NMR (400 MHz, CDCl3) δ 9. 01 (1H, s, -NH), 7.31 (1H, d, J = 2.3 Hz, H-6), 6.32 (1H, t, J = 6.6 Hz, H-1´), 4.41 (1H, dd, J = 12.0 and 4.5 Hz, H-5´a), 4.36 (1H, dd, J = 12.1 and 4.5 Hz, H-5´b), 4.00 (1H, m, H-3´), 3.91 (1H, ddd, J = 3.6, 4.6 and 4.2 Hz, H-4´), 3.45 (1H, s, 3´-OH), 2.48 (1H, ddd, J = 13.5, 6.5 and 4.0 Hz, H-2´a), 2.15 (1H, ddd, J = 13.5, 6.5 and 6.7 Hz, H-2´b), 1.92 (3H, d, J = 1.3 Hz, 5-CH3), 1.38 {9H, s, (CH3)3CCO-}. LC-MS [M+1]+ 327.31. Analysis calcd for C14H22O5N2CO: C, 55.16, H, 6.74%, found: C, 55.18, H, 6.73%.

General procedure for the direct 3′-O-acylation of 5´-O-(pivaloyl)thymidine derivatives (3-6)

A suspension of the 5´-O-pivaloylthymidine (2) (62.7 mg, 0.82 mmol) in dry pyridine (3 ml) was cooled to -5°C, after which octanoyl chloride (0.10 ml, 2.2 molar eq.) was added. The solution was stirred at this temperature for 6 h and then allowed to stand at room temperature for 5-6 hrs. The progress of the reaction was assessed by TLC (CHCl3/CH3OH) which indicated full conversion of the starting material into a single product. Excess reagent was decomposed by the addition of a few pieces of ice, and the reaction mixture was extracted with CHCl3 (3(10 ml). The combined organic extracts were washed successively with dil HCl, aqueous saturated NaHCO3, and distill H2O. The organic layer was dried over (MgSO4) and filtered, and the filtrate was evaporated off. The resulting syrup was purified by column chromatography (with CHCl3/CH3OH as eluant) to yield the octanoyl derivative (3) (90 mg) as a needle.

3´-O-Octanoyl-5´-O-pivaloylthymidine (3)

Off white crystalline solid in 80.91% yield: mp 59-61 °C, R f =0.54 (CHCl3/CH3OH = 8/1, v/v); FTIR (KBr) νmax 1704 (-CO) cm-1; 1H NMR (400 MHz, CDCl3) δ 9.01 (1H, s, -NH), 7.30 (1H, d, J = 1.8 Hz, H-6), 6.31 (1H, t, J = 6.6 Hz, H-1´), 4.49 (1H, m, H-3´), 4.41 (1H, dd, J = 12.0 and 4.5 Hz, H-5´a), 4.24 (1H, dd, J = 12.2 and 3.6 Hz, H-5´b), 4.20 (1H, m, H-4´), 2.51 (1H, ddd, J = 13.6, 6.6 and 4.6 Hz, H-2´a), 2.33 (1H, ddd, J = 12.5, 6.1 and 6.2 Hz, H-2´b), 2.32 {2H, m, CH3(CH2)5CH 2CO-}, 1.93 (3H, d, J = 1.3 Hz, 5-CH3), 1.68 {2H, m, CH3(CH2)4CH 2CH2CO-}, 1.29 {8H, m, CH3(CH 2)4(CH2)2CO-}, 1.37 {9H, s, (CH 3)3CCO-}, 0.88 {3H, m, CH 3(CH2)6CO-}. LC-MS [M+1]+ 453.31. Analysis calcd for C22H36O6N2CO: C, 61.02, H, 7.96%, found: C, 61.05, H, 7.98%.

Similar reaction and purification procedures were applied to prepare compound 4 (104 mg) compound 5 (113 mg), and compound 6 (176 mg).

3´-O-Myristoyl-5´-O-pivaloylthymidine (4)

White solid in 95.2% yield: mp 78-80 °C, R f = 0.50 (CHCl3/CH3OH = 8/1, v/v); FTIR (KBr) νmax 1705 (-CO) cm-1; 1H NMR (400 MHz, CDCl3) δ 9.01 (1H, s, -NH), 7.30 (1H, d, J = 1.3 Hz, H-6), 6.21 (1H, t, J = 6.5 Hz, H-1´), 4.48 (1H, m, H-3´), 4.41 (1H, dd, J = 12.0 and 4.5 Hz, H-5´a), 4.21 (1H, dd, J = 12.0 and 3.5 Hz, H-5´b), 4.05 (1H, ddd, J = 3.5, 4.5 and 3.9 Hz, H-4´), 2.38 (1H, ddd, J = 13.5, 6.5 and 4.0 Hz, H-2´a), 2.33 {2H, m, CH3(CH2)11CH 2CO-}, 2.20 (1H, ddd, J = 13.5, 6.5 and 6.7 Hz, H-2´b), 1.91 (3H, d, J = 1.3 Hz, 5-CH3), 1.72 {2H, m, CH3(CH2)10CH 2CH2CO-}, 1.64 {20H, m, CH3(CH 2)10CH2CH2CO-}, 1.36 {9H, s, (CH 3)3CCO-}, 0.87 {3H, t, J = 6.8 Hz, CH 3(CH2)12CO-}. LC-MS [M+1]+ 537.21. Analysis calcd for C28H48O6N2CO: C, 64.89, H, 8.95%, found: C, 64.90, H, 8.97%.

3´-O-Cinnamoyl-5՛-O-pivaloylthymidine (5)

White crystalline solid in 89.8% yield: mp 66-68 °C, R f = 0.51 (CHCl3/CH3OH = 7/1, v/v); FTIR (KBr) νmax 1735 (-CO) cm-1; 1H NMR (400 MHz, CDCl3) δ 8.88 (1H, s, -NH), 7.73 (1H, d, J = 12.0 Hz, PhCH=CHCO-), 7.50 (2H, m, Ar-H), 7.43 (1H, d, J = 1.8 Hz, H-6), 7.39 (3H, m, Ar-H), 6.49 (1H, d, J = 12.1 Hz, PhCH=CHCO-), 6.39 (1H, t, J = 6.4 Hz, H-1´), 4.51 (1H, m, H-3´), 4.38 (1H, dd, J = 12.1 and 4.5 Hz, H-5´a), 4.29 (1H, dd, J = 12.0 and 3.6 Hz, H-5´b), 3.98 (1H, ddd, J = 3.8, 4.8 and 3.8 Hz, H-4´), 2.60 (1H, ddd, J = 13.4, 6.4 and 4.4 Hz, H-2´a), 2.19 (1H, ddd, J = 13.5, 6.6 and 6.8 Hz, H-2´b), 1.89 (3H, d, J = 1.6 Hz, 5-CH3), 1.36 {9H, s, (CH 3)3CCO-}. LC-MS [M+1]+ 457.11. Analysis calcd for C23H28O6N2CO: C, 63.11, H, 6.14%, found: C, 63.14%, H, 6.18%.

5´-O-Pivaloyl-3´-O-tritylthymidine (6)

White crystalline solid in 94.35% yield: mp 142-144 °C, R f = 0.50 (CHCl3/CH3OH = 8/1, v/v); FTIR (KBr) νmax 1738 (-CO) cm-1; 1H NMR (400 MHz, CDCl3) δ 8.96 (1H, s, -NH), 7.74 (6H, m, Ar-H), 7.35 (9H, m, Ar-H), 7.14 (1H, d, J = 1.8 Hz, H-6), 6.34 (1H, t, J = 6.4 Hz, H-1´), 4.43 (1H, m, H-3´), 4.40 (1H, dd, J = 12.1 and 4.5 Hz, H-5´a), 4.36 (1H, dd, J = 12.0 and 3.6 Hz, H-5´b), 3.96 (1H, ddd, J = 3.8, 4.8 and 3.8 Hz, H-4´), 2.46 (1H, ddd, J = 13.4, 6.4 and 4.4 Hz, H-2´a), 2.12 (1H, ddd, J = 13.5, 6.6 and 6.8 Hz, H-2´b), 1.92 (3H, d, J = 1.6 Hz, 5-CH3), 1.35 {9H, s, (CH 3)3CCO-}. LC-MS [M+1]+ 569.08. Analysis calcd for C33H36O5N2CO: C, 71.79, H, 6.33%, found: C, 71.81, H, 6.36%.

Procedure for the synthesis of 5´-O-(acetyl)thymidine (7)

A solution of thymidine (1) (200 mg, 0.82 mmol) in dry pyridine (3 ml) was cooled to -5°C, after which acetic anhydride (0.085 ml, 1.1 molar eq.) was added to it. The mixture was stirred at this temperature for 6-7 h and further at room temperature overnight. T.L.C. examination (CHCl3/CH3OH) indicated full conversion of the starting material into a single product. Work-up as usual and purification by silica gel column chromatography (CHCl3/CH3OH, as eluant) yielded the title compound (7) (92.4 mg) as a white crystalline solid. White crystalline solid in 90.96% yield: mp 58-60 °C, R f = 0.52 (CHCl3/CH3OH = 8/1, v/v); FTIR (KBr) νmax 1708 (-CO), 3418-3480 (br) (-OH) cm-1; 1H NMR (400 MHz, CDCl3) δ 9. 01 (1H, s, -NH), 7.16 (1H, d, J = 1.3 Hz, H-6), 6.80 (1H, m, H-1´), 4.21 (1H, dd, J = 12.0 and 4.7 Hz, H-5´a), 4.15 (1H, dd, J = 12.1 and 4.5 Hz, H-5´b), 4.08 (1H, m, H-3´), 4.05 (1H, ddd, J = 3.6, 4.6 and 4.2 Hz, H-4´), 3.37 (1H, br s, 3´-OH), 2.35 (1H, ddd, J = 13.7, 6.6 and 4.4 Hz, H-2´a), 2.25 (1H, ddd, J = 13.6, 6.6 and 6.8 Hz, H-2´b), 2.11 (3H, s, CH 3CO-), 1.70 (3H, d, J = 1.3 Hz, 5-CH3). LC-MS [M+1]+ 285.29. Analysis calcd for C11H16O5N2CO: C, 50.65, H, 5.63%, found: C, 50.67, H, 5.66%.

General procedure for the direct 3′-O-acylation of 5´-O-(acetyl)thymidine derivatives (8-11)

A solution of the acetyl derivative (7) (60 mg, 0.21 mmol) in dry pyridine (3 ml) was treated with myristoyl chloride (0.110 gm, 2.2 molar eq.). The mixture was stirred at 0°C for 6-7 h and further kept overnight at room temperature. Excess reagent was decomposed by the addition of a few pieces of ice, and the contents were extracted with CHCl3 (3(10 ml). The combined organic extract was washed successively with dilute HCl, saturated aqueous NaHCO3, and distilled H2O. The CHCl3 layer was dried (Na2SO4), filtered, and evaporated to dryness. The residue was purified by passing it through a column with CHCl3/CH3OH as eluent, and the process yielded the 3-O-myristoyl derivative (8, 101 mg) as a crystalline solid.

5´-O-Acetyl-3´-O-myristoylthymidine (8)

White crystalline solid in 97.11% yield: mp 69-71 °C, R f = 0.55 (CHCl3/CH3OH = 7/1, v/v); FTIR (KBr) νmax 1701 (-CO) cm-1; 1H NMR (400 MHz, CDCl3) δ 8.91 (1H, s, -NH), 7.31 (1H, d, J = 1.3 Hz, H-6), 6.28 (1H, t, J = 6.5 Hz, H-1´), 4.48 (1H, m, H-3´), 4.39 (1H, dd, J = 12.0 and 4.5 Hz, H-5´a), 4.20 (1H, dd, J = 12.0 and 3.5 Hz, H-5´b), 4.05 (1H, ddd, J = 3.5, 4.5 and 3.9 Hz, H-4´), 2.36 (1H, ddd, J = 13.5, 6.5 and 4.0 Hz, H-2´a), 2.35 {2H, m, CH3(CH2)11CH 2CO-}, 2.24 (1H, ddd, J = 13.5, 6.5 and 6.7 Hz, H-2´b), 2.10 (3H, s, CH 3CO-), 1.90 (3H, d, J = 1.3 Hz, 5-CH3), 1.68 {2H, m, CH3(CH2)10CH 2CH2CO-}, 1.42 {20H, br m, CH3(CH 2)10CH2CH2CO-}, 0.89 {3H, t, J = 6.8 Hz, CH 3(CH2)12CO-}. LC-MS [M+1]+ 495.64. Analysis calcd for C25H42O6N2CO: C, 63.07, H, 8.49%, found: C, 63.10, H, 8.52%.

Similar reaction and purification methods were employed to synthesize a compound (9) (164 mg), compound (10) (152 mg), and compound (11) (99.5 mg).

5´-O-Acetyl-3´-O-palmitoylthymidine (9)

White crystalline solid in 77.49% yield: mp 88-90 °C, R f = 0.51 (CHCl3/CH3OH = 8/1, v/v); FTIR (KBr) νmax 1710 (-CO) cm-1; 1H NMR (400 MHz, CDCl3) δ 9.29 (1H, s, -NH), 7.31 (1H, d, J = 1.3 Hz, H-6), 6.31 (1H, t, J = 6.5 Hz, H-1´), 5.24 (1H, m, H-3´), 4.42 (1H, dd, J = 12.2 and 4.6 Hz, H-5´a), 4.38 (1H, dd, J = 12.1 and 3.6 Hz, H-5´b), 4.15 (1H, ddd, J = 3.5, 4.5 and 3.9 Hz, H-4´), 2.48 (1H, ddd, J=13.5, 6.5 and 4.0 Hz, H-2´a), 2.36 {2H, m, CH3(CH2)11CH 2CO-}, 2.32 {2H, m, CH3(CH2)13CH 2CO-}, 2.26 (1H, ddd, J = 13.5, 6.5 and 6.7 Hz, H-2´b), 2.12 (3H, s, CH 3CO-), 1.96 (3H, d, J = 1.3 Hz, 5-CH3), 1.72 {2H, m, CH3(CH 2)12CH 2CH2CO-}, 1.28 {26H, m, CH3(CH 2)13CH2CO-}, 0.91 {3H, m, CH 3(CH2)14CO-}. LC-MS [M+1]+ 523.32. Analysis calcd for C27H46O6N2CO: C, 64.33, H, 8.81%, found: C, 64.36, H, 8.84%.

5´-O-Acetyl-3´-O-stearoylthymidine (10)

White crystalline solid in 93.11% yield: mp 77-79 °C, R f = 0.54 (CHCl3/CH3OH = 8/1, v/v); FTIR (KBr) νmax 1711 (-CO) cm-1; 1H NMR (400 MHz, CDCl3) δ 9. 00 (1H, s, -NH), 7.31 (1H, d, J = 2.2 Hz, H-6), 6.21 (1H, t, J = 6.5 Hz, H-1´), 4.68 (1H, m, H-3´), 4.50 (1H, dd, J = 12.0 and 4.5 Hz, H-5´a), 4.37 (1H, m, H-5´b), 4.24 (1H, m, H-4´), 2.38 (1H, ddd, J = 13.5, 6.5 and 4.0 Hz, H-2´a), 2.32 {2H, m, CH3(CH2)15CH 2CO-}, 2.22 (1H, ddd, J = 13.5, 6.5 and 6.7 Hz, H-2´b), 2.11 (3H, s, CH 3CO-), 1.92 (3H, d, J = 1.3 Hz, 5-CH3), 1.26 {30H, m, CH3(CH 2)15CH2CO-}, 1.23 {9H, s, (CH 3)3CCO-}, 0.91 {3H, m, CH 3(CH2)16CO-}. LC-MS [M+1]+ 551.82. Analysis calcd for C29H50O6N2CO: C, 65.36, H, 9.08%, found: C, 65.39, H, 9.10%.

5´-O-Acetyl-(3´-bromobenzoyl)thymidine (11)

White crystalline solid in 89.75% yield: mp 69-71 °C, R f = 0.52 (CHCl3/CH3OH = 16/1, v/v); FTIR (KBr) νmax 1706 (-CO) cm-1; 1H NMR (400 MHz, CDCl3) δ 9. 02 (1H, s, -NH), 8.22 ( 1H, d, J = 7.7 Hz, Ar-H), 8.12 (1H, s, Ar-H), 8.01 (1H, d, J = 7.6 Hz, Ar-H), 7.31 (1H, t, J = 7.6 Hz, Ar -H), 6.66 (1H, d, J = 1.7 Hz, H-6), 6.62 (1H, t, J = 6.6 Hz, H-1´), 5.36 (1H, m, H-3´), 4.84 (1H, dd, J = 12.1 and 4.7 Hz, H-5´a), 4.43 (1H, dd, J = 11.9 and 3.8 Hz, H-5´b), 4.16 (1H, ddd, J = 3.7, 4.8 and 4.2 Hz, H-4´), 2.40 (1H, m, H-2´a), 2.35 (1H, m, H-2´b), 2.08 (3H, s, CH 3CO-), 1.55 (3H, d, J = 1.6 Hz, 5-CH3). LC-MS [M+1]+ 468.28. Analysis calcd for BrC18H19O6N2CO: C, 48.79, H, 4.07%, found: C, 48.80, H, 4.11%.

Procedure for the synthesis of 5´-O-(4-t-butylbenzoyl)thymidine (12)

A solution of thymidine (1) (200 mg, 0.82 mmol) was dissolved in dry pyridine (3 ml) and cooled to 0°C, after which 4-t-butylbenzoyl chloride (173 mg, 1.1 molar eq.) was added. The mixture was stirred at 0°C for 6-8 h and allowed to stand at room temperature overnight. The conventional work-up procedure followed by chromatographic purification with CHCl3/CH3OH (4:1) as eluent yielded the title derivative (12, 90.4 mg) as a crystalline solid. White crystalline solid in 83.21% yield: mp 65-67 °C, R f = 0.52 (CHCl3/CH3OH = 9/1, v/v); FTIR (KBr) νmax 1701 (-CO) cm-1; 1H NMR (400 MHz, CDCl3) δ 9.00 (1H, s, -NH), 7.96 (2H, m, Ar-H), 7.34 (2H, m, Ar-H), 7.01 (1H, d, J = 1.8 Hz, H-6), 6.32 (1H, t, J = 6.4 Hz, H-1´), 4.68 (1H, dd, J = 12.2 and 4.6 Hz, H-5´a), 4.62 (1H, dd, J = 12.1 and 3.7 Hz, H-5´b), 4.10 (1H, m, H-3´), 4.06 (1H, ddd, J = 3.8, 4.8 and 3.8 Hz, H-4´), 3.13 (1H, br s, 3´-OH), 2.46 (1H, ddd, J = 13.6, 6.5 and 4.5 Hz, H-2´a), 2.19 (1H, ddd, J = 13.6, 6.7 and 6.9 Hz, H-2´b), 1.75 (3H, d, J = 1.6 Hz, 5-CH3), 1.26, 1.24, 1.21{9H, 3s, (CH 3) 3C-}. LC-MS [M+1]+ 403.75. Analysis calcd for C20H26O5N2CO: C, 62.57, H, 7.19%, found: C, 62.59, H, 7.22%.

General procedure for the direct 3′-O-acylation of 5´-O-(4-t-butylbenzoyl)thymidine derivatives (13-16)

A solution of 5ʹ-O-(4-t-butylbenzoyl)thymidine (12) (84 mg, 0.21 mmol) in dry pyridine (3 ml) was cooled to 0°C, after which acetic anhydride (0.05 ml, 0.5 mmol) was added. The mixture was stirred at 0°C for 6-8 h and further allowed to stand at room temperature overnight. Work-up as described earlier and chromatographic purification with CHCl3/CH3OH as eluant yielded the 4-t-butylbenzoyl derivative (13) (90 mg) as a crystalline solid.

5´-O-(4-t-Butylbenzoyl)-3´-O-hexanoylthymidine (13)

White crystalline solid in 88.46% yield: mp 63-65 °C, R f = 0.51 (CHCl3/CH3OH = 8/1, v/v); FTIR (KBr) νmax 1700 (-CO) cm-1; 1H NMR (400 MHz, CDCl3) δ 9.06 (1H, s, -NH), 8.05 (2H, m, Ar-H), 7.51 (2H, m, Ar-H), 7.28 (1H, d, J = 1.3 Hz, H-6), 6.37 (1H, t, J =6.5 Hz, H-1´), 5.25 (1H, m, H-3´), 4.68 (1H, dd, J = 12.2 and 4.6 Hz, H-5´a), 4.54 (1H, dd, J = 12.1 and 3.6 Hz, H-5´b), 4.44 (1H, ddd, J = 3.5, 4.5 and 3.9 Hz, H-4´), 2.36 (1H, ddd, J = 13.5, 6.5 and 4.0 Hz, H-2´a), 2.33 {2H, m, CH3(CH2)3CH 2CO-}, 2.28 (1H, ddd, J = 13.5, 6.5 and 6.7 Hz, H-2´b), 1.69 (3H, d, J = 1.3 Hz, 5-CH3), 1.64 {2H, m, CH3(CH2)2CH 2CH2CO-}, 1.28 {4H, m, CH3(CH 2)2CH2CH2CO-}, 0.90 {3H, m, CH 3(CH2)4CO-}, 1.21, 1.19, 1.16{9H, 3s, (CH 3) 3C-}. LC-MS [M+1]+ 501.85. Analysis calcd for C26H36O6N2CO: C, 64.69, H 7.19%, found: C, 64.72, H, 7.21%.

A similar procedure was used to yield compound (14, 120 mg,), compound (15, 123.9 mg), and compound (16, 84.54 mg, 79.2%) as needles (mp 61-63°C).

5´-O-(4-t-Butylbenzoyl)-3´-O-lauroylthymidine (14)

White crystalline solid in 98.36% yield: mp 57-59 °C, R f = 0.54 (CHCl3/CH3OH = 8/1, v/v); FTIR (KBr) νmax 1707 (-CO) cm-1; 1H NMR (400 MHz, CDCl3) δ 9.0 (1H, s, -NH), 8.01 (2H, m, Ar-H), 7.48 (2H, m, Ar-H), 7.28 (1H, d, J = 2.3 Hz, H-6), 6.21 (1H, t, J =6.4 Hz, H-1´), 4.78 (1H, m, H-3´), 4.75 (1H, dd, J = 11.8 and 4.6 Hz, H-5´a), 4.70 (1H, dd, J = 12.1 and 4.5 Hz, H-5´b), 4.51 (1H, ddd, J = 4.5, 5.5 and 4.9 Hz, H-4´), 2.38 (1H, ddd, J = 12.9, 6.7 and 4.4 Hz, H-2´a), 2.34 {2H, m, CH3(CH2)9CH 2CO-}, 2.34 (1H, ddd, J = 13.6, 6.2 and 6.8 Hz, H-2´b), 1.95 (3H, d, J = 1.3 Hz, 5-CH3), 1.64 {2H, m, CH3(CH2)8CH 2CH2CO-}, 1.26 {16H, m, CH3(CH 2)8CH2CH2CO-}, 1.24, 1.21, 1.14{9H, 3s, (CH 3)3C-}, 0.92 {3H, m, CH 3(CH2)10CO-}. LC-MS [M+1]+ 586.01. Analysis calcd for C32H48O6N2CO: C, 67.69, H, 8.20%, found: C, 67.73, H, 8.22%.

5´-O-(4-t-Butylbenzoyl)-3´-O-myristoylthymidine (15)

White crystalline solid in 97.3% yield: mp 74-76 °C, R f = 0.52 (CHCl3/CH3OH = 8/1, v/v); FTIR (KBr) νmax 1702 (-CO) cm-1; 1H NMR (400 MHz, CDCl3) δ 8.92 (1H, s, -NH), 8.0 (2H, m, Ar-H), 7.45 (2H, m, Ar-H), 7.27 (1H, d, J = 1.3 Hz, H-6), 6.24 (1H, t, J = 6.5 Hz, H-1´), 4.46 (1H, m, H-3´), 4.40 (1H, dd, J = 12.0 and 4.5 Hz, H-5´a), 4.26 (1H, dd, J = 12.0 and 3.5 Hz, H-5´b), 4.15 (1H, ddd, J = 3.5, 4.5 and 3.9 Hz, H-4´), 2.38 (1H, ddd, J = 13.5, 6.5 and 4.0 Hz, H-2´a), 2.34 {2H, m, CH3(CH2)11CH 2CO-}, 2.25 (1H, ddd, J = 13.5, 6.5 and 6.7 Hz, H-2´b), 1.92 (3H, d, J = 1.3 Hz, 5-CH3), 1.67 {2H, m, CH3(CH2)10CH 2CH2CO-}, 1.26 {20H, br m, CH3(CH 2)10CH2CH2CO-}, 1.25, 1.22, 1.15{9H, 3s, (CH 3)3C-}, 0.88 {3H, t, J = 6.8 Hz, CH 3(CH2)12CO-}. LC-MS [M+1]+ 614.07. Analysis calcd for C34H52O6N2CO: C, 68.51, H, 8.48%, found: C, 68.53, H, 8.51%.

5´-O-(4-t-Butylbenzoyl)-3´-O-(4-nitrobenzoyl)thymidine (16)

White crystalline solid in 79.2% yield: mp 61-63 °C, R f = 0.50 (CHCl3/CH3OH = 8/1, v/v); FTIR (KBr) νmax 1700 (-CO) cm-1; 1H NMR (400 MHz, CDCl3) δ 9.09 (1H, s, -NH), 8.06, 7.52 (2 × 2H, 2 × d, J = 8.7 Hz, Ar-H), 8.0 (2H, m, Ar-H), 7.31 (2H, m, Ar-H), 7.27 (1H, d, J = 1.3 Hz, H-6), 6.24 (1H, t, J = 6.5 Hz, H-1´), 4.46 (1H, m, H-3´), 4.40 (1H, dd, J = 12.0 and 4.5 Hz, H-5´a), 4.26 (1H, dd, J = 12.0 and 3.5 Hz, H-5´b), 4.15 (1H, ddd, J = 3.5, 4.5 and 3.9 Hz, H-4´), 2.38 (1H, ddd, J = 13.5, 6.5 and 4.0 Hz, H-2´a), 2.25 (1H, ddd, J = 13.5, 6.5 and 6.7 Hz, H-2´b), 1.72 (3H, d, J = 1.3 Hz, 5-CH3), 1.36, 1.28, 1.21{9H, 3s, (CH 3)3C-}. LC-MS [M+1]+ 552.81. Analysis calcd for C27H29O8N3CO: C, 60.89, H, 5.25%, found: C, 60.91, H, 5.28%.

X-ray powder diffraction

XRD is a rapid analytical technique primarily used for phase identification of crystalline material. It can provide information on unit cell dimensions [28]. The synthesized tested compounds to be analyzed were finely ground, homogenized, and average bulk composition was determined.

Computational details

Geometrical optimization of the selected thymidine derivatives and calculation of vibrational frequency were performed using Gaussian 09 software package [29]. Density functional theory (DFT) with Beck’s (B) [30] three-parameter hybrid model, Lee, Yang, and Parr’s (LYP) [31] correlation functional under 3-21G basis set has been used to optimize the ligands.

The three-dimensional crystal structure of a bacterial protein FimH of E. coli (PDB ID: 4XO8) (Fig. 2) was retrieved in pdb format from the protein data bank [32]. All hetero atoms and water molecules were removed using PyMol (version 1.3) software packages [33]. Swiss-Pdb viewer software (version 4.1.0) was employed for energy minimization of the protein [34]. Then optimized thymidine ligands were subjected for molecular docking study against E. coli (4XO8). In fine, molecular docking simulation was rendered by PyRx software (version 0.8) [35] considering the protein as a macromolecule and the drug as a ligand. AutodockVina was employed for docking analysis, and AutoDock Tools (ADT) of the MGL software package was used to convert pdb into a pdbqt format to input protein and ligands. The size of the grid box in AutoDockVina was kept at 33.3452, 30.6390, and 60.5649 Å for X, Y, Z directions respectively. After the completion docking, both the macromolecule and ligand structures were saved in. pdbqt format needed by Accelrys Discovery Studio (version 4.1) to explore and visualize the docking result and search the nonbonding interactions between ligands and amino acid residues of receptor protein [36]. Lectin FimH is an eosinophil secretion protein with antipathogen activities involved in the host immune defense system. The bactericidal capacity of the receptor relies on its action on both the plasma membrane and the bacterial wall. It interacts with bacterial lipopolysaccharide (LPS) and lipoteichoic acid (LTA). In vitro interacts with and insert into lipid bilayers composed of dioleoyl phosphatidylcholine and dioleoyl phosphatidylglycerol. In vitro, tends to form amyloid-like aggregates at pH 3, but not at pH 5, nor 7. Since FimH of E. coli 4XO8 has its crystal structure in a state that represents the pharmacological target for the development of new drugs, it is selected for computational studies.


Fig. 2
Crystal structure of FimH E. coli (4XO8).

Protein validation was performed by the PROCHECK server (https://servicesn.mbi.ucla.edu/PROCHECK/) and fork out 96.9697 overall quality factors in ERRAT (http://www.ncbi.nlm.nih.gov/entrez/query.fcgi?cmd=Retrieve&db=PubMed&list_uids=8401235&dopt=Abstract), 80% score in VERIFY 3D (https://www.ncbi.nlm.nih.gov/pubmed/1853201?dopt=Abstract) PDBsum (http://www.ebi.ac.uk/thornton-srv/databases/pdbsum/Generate.html) server also used to test the validation of receptor with Ramachandran plot (Fig. 3) which exhibited 88.8% residues in the allowed region.


Fig. 3
Ramachandran plot of 4XO8.

Docking validation protocol

The validation of docking results was done by extracting the co-crystallized ligand of the FimH protein (PDB ID: 4X08) and re-docking it into the same position. The lowest energy pose gained on re-docking and the co-crystallized ligands were superimposed, and its root means square deviation (RMSD) was calculated between these two superimposed ligands. To validate the docking process, The RMSD must be within a reliable range of 2 Å [37, 38].

In silico pharmacokinetics ADMET prediction

To search potential drug candidates, the ADMET properties were developed for the preliminary prediction of the pharmacokinetic and physicochemical parameters in the discovery drug process. In silico study gives a manner the accession of pharmacokinetic parameters (adsorption, distribution, metabolism, excretion, and toxicity; ADMET) [39], its absorption in the human intestine, percolation of the blood-brain barrier and the central nervous system, the metabolism indicates the chemical biotransformation of a drug by the body, total clearance of drugs and the toxicity levels of the molecules.

Results and discussion

Chemistry

The main objective of this study was to perform selective pivaloylation, acetylation, and 4-t-butylbenzoylation (Scheme 1) of thymidine (1) using the direct acylation method. A series of derivatives of the resulting products were synthesized using several acylating agents. Selective acylation of a particular hydroxyl group is vital in nucleoside chemistry because the resulting acylation products might provide useful precursors for the synthesis of newer and biologically effective products. Additionally, the resulting acyl derivatives might have a great utility as versatile intermediates for the synthesis of various other nucleosides of fundamental biological importance.


Scheme 1
Reagents and conditions: (a) dry C6H5N, −5°C, 5-6 h; (b) dry pyridine, several acyl halides (3-6); (c) dry C6H5N, −5°C, 6-7 h; (d) dry pyridine, acyl halides (8-11), (e) dry C6H5N, -5-7°C, 6-8 h; (f) dry pyridine, acyl halides (13-16), 0°C to rt, DMAP, stirrer for 6-8 h.

Characterization and selective pivalylation of thymidine

Thymidine (1) was initially treated with unimolecular amount of pivaloyl chloride in dry pyridine at low temperature, followed by purification by silica gel chromatography, which yielded the pivaloyl derivative (2) as a crystalline solid. The infrared spectrum showed absorption bands at 1690 and 3410-3535 (broad) cm-1 corresponding to carbonyl and hydroxyl stretchings, respectively, and thereby indicating the introduction of an acyl group. The 1H-NMR spectrum showed a nine-proton singlet at δ 1.38 [(CH3)3CCO-] was because of the presence of methyl protons of the pivaloyl group. Additionally, the 1H-NMR spectrum demonstrated a downfield shift of the H-5ʹ proton to δ 4.41 (dd, J = 12.0 and 4.5 Hz, H-5ʹa), and δ 4.36 (dd, J = 12.1 and 4.5 Hz, H-5ʹb) from their precursor value [40], indicating the attachment of the pivaloyl group at position 5ʹ. The mass spectrum of compound 2 contained a molecular ion peak at m/z [M+1]+ 327.31 that corresponded to the same molecular formula. The rest of the 1H-NMR spectrum was in accordance with the structure. The formation of compound (2) may be explained by assuming that pivaloyl chloride attaches with the most reactive and less sterically hindered primary -OH group of the ribfuranose moiety at 5ʹ position, thereby forming the 5ʹ-O-(pivaloyl)thymidine (2) as the sole product.

The pivaloyl derivative (2) was transformed into its octanoyl derivative (3) (80.91%) as needles (mp 59-61°C) with octanoyl chloride in dry C6H5N. The 1H-NMR spectrum of the octanoate was in accordance with the structure assigned to it. The two two-proton multiplets at δ 2.32 [CH3(CH2)5CH 2CO-] and 1.68 [CH3(CH2)4CH 2CH2CO-], an eight-proton multiplet at δ 1.29 [CH3(CH 2)4(CH2)2CO-], and a three-proton multiplet at δ 0.88 [CH 3(CH2)6CO-] were indicative of the presence of one octanoyl group. Compound (2) was also converted into the myristoate (4) with a yield of 95.2% as white needles (mp 78-80°C). Mass spectrometry provided a molecular ion peak at m/z [M+1]+ 537.21, which corresponded to the aforementioned molecular formula. Complete analysis of the FTIR and 1H-NMR spectra of this compound conformed to the structure.

The formation of the octanoate (3) and the myristoate (4) further confirmed the structure of the compound (2). The structure of the pivaloyate (2) was finally confirmed by its conversion into the cinnamoyl (5) and trityl (6) derivatives. In the 1H-NMR spectrum of compound (5), two one-proton doublets at δ 7.73 (as d, J = 12.0 Hz, PhCH=CHCO-) and δ 6.49 (as d, J = 12.1 Hz, PhCH=CHCO-) indicated the presence of cinnamoyl group in the molecule. The structure of the tritylate was assigned as 5ʹ-O-pivaloyl-3ʹ-O-tritylthymidine (6) by analyzing its 1H-NMR and FTIR spectra.

Characterization and selective acetylation of thymidine

Thymidine (1) was further subjected to acetylation using the same method to observe the selectivity of the acetyl group. Thus, acetylation of compound (1) yielded acetyl derivative (7) (90.96%) as a white crystalline solid (mp 58-60°C). The 1H-NMR spectrum, one three-proton singlet at ( 2.11 was because of the methyl protons of one acetyloxy group. The downfield shifts of H-5ʹ to δ 4.21 (as dd, J = 12.0 and 4.7 Hz, H-5ʹa) and 4.15 (as, dd, J = 12.1 and 4.5 Hz, H-5ʹb) as compared with the reference value [41] indicated the attachment of the acetyl group at position 5ʹ. Complete analysis of the rest of the spectra helped to deduce the structure of the acetyl derivative as 5ʹ-O-(acetyl)thymidine (7). Its conversion to myristoyl derivative (8), palmitoate (9), stearoate (10), and 3-bromobenzoyl (11) and their identification further supported the structure of the acetyl derivative (7).

Characterization and selective 4-t-butylbenzoylation of thymidine

Finally, the 4-t-butylbenzoylation of the thymidine (1) was performed, where it was allowed to react with an equimolar amount of 4-t-butylbenzoyl chloride in dry pyridine to yield the 4-t-butylbenzoylate (12) (83.21%) as a crystalline solid (mp 65-67°C). The FTIR spectrum demonstrated the absorption bands at 1701 cm-1 because of -CO and 3429-3505 (br) cm-1 for -OH stretching. In its 1H-NMR spectrum, two two-proton multiplets at δ 7.96 (Ar-H) and δ 7.34 (Ar-H) and three singlets at δ 1.26, δ 1.24 and δ 1.21 [9H, 3s, (CH 3)3C-] corresponded to the presence of one 4-t-butylbenzoyl group and downfield shift of C-5ʹ to δ 4.68 (as dd, J = 12.2 and 4.6 Hz, H-5ʹa) and 4.62 (as dd, J = 12.1 and 3.7 Hz, H-5ʹb) from its usual δ value (approximately 4.0) [42]. The rest of the 1H-NMR spectrum was in accordance with the structure assigned to the 4-t-butylbenzoylate as 5ʹ-O-(4-t-butylbenzoyl)thymidine (12).

The structure of the 4-t-butylbenzoylate was further confirmed by synthesizing its fatty acids derivatives: hexanoyl, lauroyl, and myristoyl. Thus, the reaction of the 4-t-butylbenzoylate derivative (12) with hexanoyl chloride in pyridine, followed by conventional work-up and column chromatography yielded the hexanoylate (13) (88.46%) as a crystalline solid (mp 63-65°C). The 1H-NMR spectrum revealed two two-proton multiplets at δ 2.33 [CH3(CH2)3CH 2CO-] and δ 1.64 [CH3(CH2)2CH 2CH2CO-], one four-proton multiplet at δ 1.28 [CH3(CH 2)2CH2CH2CO-], and a three-proton multiplet at δ 0.90 [CH 3(CH2)4CO-] indicating the presence of one hexanoyl group. Analysis of the FTIR, 1H-NMR, and elemental data of this compound enabled us to assign the structure of the hexanoylate derivative as 5ʹ-O-(4-t-butylbenzoyl)-3ʹ-O-hexanoylthymidine (13). Similarly, lauroylation and myristoylation of compound (12) with the corresponding halides yielded the lauroylate (14) and myristoyl (15) in good yields. The structure of these derivatives (14 and 15) was confirmed by a complete analysis of their infrared and NMR spectra. The structure accorded to the 4-t-butylbenzoylate derivative (12) was finally confirmed by synthesis and identification of its 4-nitrobenzoyl derivative (16). In its 1H-NMR spectrum, two low field two-proton doublets at δ 8.06 and δ 7.52 (2 ×2H, 2 × d, J = 8.7 Hz, Ar-H) corresponded to one 4-nitrobenzoyl group. The structure of this 4-nitrobenzoyate was assigned as 5ʹ-O-(4-t-butylbenzoyl)-3ʹ-O-(4-nitrobenzoyl)thymidine (16). Thus, selective pivaloylation, acetylation, and 4-t-butylbenzoylation of thymidine (1) using the direct acylation method were unique because all the reactions provided single-crystalline derivatives in good yields.

X-ray powder diffraction

The XRD method is principally used for the quantitative identification of crystalline compounds, whereas the single-crystal X-ray diffraction method is principally used for structure determination. If h, k, and l represent the miller indices, the rules of the determination of crystal lattice type are as follows (Table 1).

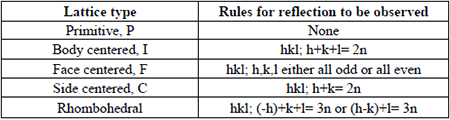

Table 1
Rules for the determination of crystal lattice type.

The crystallographic structure of the compounds 4, 8, 9, 10, and 15 were evaluated by XRD at room temperature, and the pattern is presented in Table 2.

Table 2
The peak list of compounds 4, 8, 9, 10, and 15.

The compounds 4 (Fig. 4), 8, 9, 10, and 15 showed several lines with high intensity in their XRD pattern, which indicates that all the compounds are crystalline. The XRD pattern of the pure compound synthesized under optimum conditions was displayed in the 2θ range of 0o-50o. The peaks at 2θ corresponded to 8.379 and 21.545 (h, k, l: 110 and 123), 8.364 and 21.468 (h, k, l: 110 and 123), 7.372 and 21.491 (h, k, l: 100 and 122), and 6.564 and 21.408 (h, k, l: 100 and 310) for compounds 4, 8, 9, and 10, respectively. These peaks indicated the formation of typical phases of compounds 4, 8, 9, and 10. According to the phase analysis, compounds synthesized by this method have high purity, and no impurities were detected in the XRD pattern.

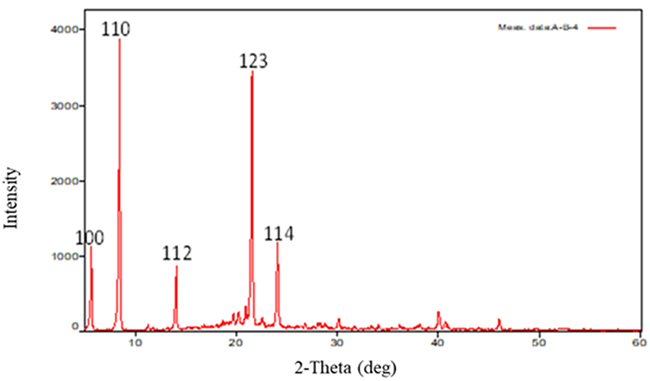

Fig. 4
X-ray diffraction peak of compound 4.

Computational studies

The newly synthesized derivatives of thymidine were designated and used in this study were according to the reaction profile. Thymidine (1) and some of its derivatives were entitled and optimized in the quantum mechanical method.

Docking validation study

To interpret the ability of docking algorithms to determine the conformation of the protein-bound ligand, re-docking of the co-crystallized ligand was employed to validate the accuracy of the docking procedure. Fig. 5 resolved the superimposed view between the docked ligand conformation and the co-crystallized ligand conformation and the RMSD value is 1.695 Ǻ. The complex was then found to interact with the same amino acid residues compared to the ones reported in the present study. The bulky symmetric molecules can be exchanged in the binding site during docking, as the case in this investigation; the RMSD would be at a very high level. On the contrary, the small compounds can gain low RMSD easily even when placed randomly. Some reported studies [43,44,45] have suggested a new benchmark for the quality of docking poses based on visual inspection. For visual inspection, Fig. 6 shows the 2D visualization of the interactions between a generated docking pose and the experimental ligand conformation. The results of this visual inspection show the same interactions as in the experimental binding mode, as observed in Fig. 7. This result reveals that alone is not a reliable parameter for the quality of docking poses for docking validation and the use of visual inspection as a new reference is essential. This partially proved the efficiency and validity of the docking protocol.


Fig. 5
Superimpose view of re-docking, (blue) onto co-crystallized complex (red) in the active site using PyMOL (RMSD = 1.695 Å).


Fig. 6
Docked conformation of compound (11) at inhibition bounding site of 4XO8 (A) and superimposed view of all compounds after rigid docking (B).


Fig. 7
Non-bonding interactions of compound (1 6, 11, and 16) with the amino acid residues of 4XO8 made by Discovery Studio.

Molecular docking studies

By using the Autodock Vina, molecular docking was performed to suggest the best candidates among the nine antibacterials (1, 3, 4, 5, 6, 11, 13, 14, and 16) based on their binding affinities. All selected candidates were docked into the same binding pocket of FimH of E. coli (4XO8) using similar optimized docking conditions to identify their binding mode. The results of the docking analysis showed that all ligands, along with the parent ligand, obtain binding affinities ranging from -4.8 to -6.8 kcal/mol. As shown in Table 3, derivatives (3, 4, 5, 13, and 14) showed comparatively lower binding affinities compared to the parent drug, thymidine (1), while others exhibited nearly to it. These results indicated that alteration of -OH group, along with an aromatic ring or a long carbon chain molecule increased the binding affinity, while the addition of hetero groups like Cl, Br, and NO2 made some fickleness in binding affinities; however, modification with halogenated aromatic rings increased the binding affinity. The docked pose clearly showed that the drug molecules bind within the active site of the FimH of E. coli (4XO8) macromolecular structure (Fig. 6). Fig. 7 showed that derivatives (1, 6, 11, 13, and 16) (binding affinities -6.8, -6.1, -6.7, -5.4 and -6.5 kcal/mol) binds firmly through hydrophobic bonds with residues Tyr48, Ile52, and Ile13, where, these residues exhibited alkyl, pi-alkyl and pi-pi stacked interaction. Besides, compounds (6, 11, 13, and 16) showed a conventional hydrogen bond with residues Tyr137, Gln133, Asn135, Gln138, and Asp140. Again, electrostatic bonds (Pi-cation interaction) were observed for the compounds 13 and 16 with the residue phe1. Compounds 3 and 4 showed a similar binding site with residues Ala106 (shorter distance 3.85267 Å), but the compound 4 strongly interacted by a hydrogen bond with Gly79 in a closer distance of 1.96863 Å. It is clear from the structural contrast compounds (6, 11, and 16) have an additional aromatic (halogenated ring and nitrobenzene ring) substituent in the parent structure, indicating a high density of electron in the molecule leading to a comparatively higher binding affinity -6.1, -6.7, and -6.5 kcal/mol.

Table 3
Binding affinity (kcal/mol) and nonbonding interactions of thymidine and 5´-O- and 3′-O-acyl derivatives.

Table 3
Binding affinity (kcal/mol) and nonbonding interactions of thymidine and 5´-O- and 3′-O-acyl derivatives. (Cont.)

On the other hand, compounds 5 and 14 exhibited similar three binding sites with Asn23, Ala25, and Val22 through both hydrogen and hydrophobic bonds. A new type of interaction i.e. pi-pi stacked observed in the case of compound (14) with Ala25. Again, these two derivatives maintained some uniformity with the ring-containing compounds (i.e. 6, 11, and 16) by the active residues of Ser39, Lys76, Pro104, Val35, and Val36.

Along with Phe1, compounds (11, 13, and 16) displayed the maximum π-alkyl, π-cation, and π- π interactions with the Tyr48 and Ile13 indicating the tight binding with the active site. It suggested that Tyr48 is considered as the principal component of the PPS, responsible for the accessibility of small molecules to the active site. Binding affinity and binding specialty were increased in the case of compounds (4, 5, 6, 11, 13, and 16) due to their significant hydrogen bonding. It was observed that modifications of the -OH group of thymidine (1) increased the π-π interactions with the residues of the active site while increasing their polarity resulted in the formation of hydrogen bonding interactions. The most prominent H-bonds were obtained in the compound (11), forming with Asp140, Gln133, Asn135, and Phe1 residues.

In contrast, compounds (5, 6, and 16) formed similar numbers of H-bonds with different residues. Again, compounds 11 and 16 showed the similar H-bond interactions with Phe1, Gln133, and Asn135, despite having different bonding distances. Hydrogen-bonds executed a vital function in shaping the specificity of ligand binding with the receptor, drug design in chemical and biological processes, molecular recognition, and biological activity [46]. The hydrogen bond surface and hydrophobic surface of the compound (11) consequently represented in Fig. 8. We realized that the analyzed bind within some of the catalytic active site such as isoleucines (Ile13 and Ile52), Arg98, Lys76, Tyr48, Tyr137, and Phe1 of the FimH of 4XO8, which is responsible for several activities of E. coli bacteria. The calculated binding affinities varied in the range of (-4.6 to -6.7 kcal/mol) suggesting the molecules can spontaneously interact within the binding site of FimH of E. coli. Among all the compounds, the inhibition activity of the compound (11) was found to be the highest (-6.7 kcal/mol).


Fig. 8
Hydrogen bond and hydrophobic surface of FimH of E. coli of 4XO8 with compound (11).

ADMET analysis

All newly modified thymidine derivatives have shown the potential activities. Therefore, to ensure that the modified compounds are viable drugs, we used the in silico pharmacokinetic parameters ADMET. The pkCSM online server [47] was employed to calculate in silico ADMET properties (Table 4). The absorbance value below 30% indicated poor absorbance but most of the compounds displayed a value above 70%, which revealed a good absorbance in the human intestine.

Table 4
In silico ADMET prediction of thymidine and 5´-O- and 3′-O-acyl derivatives.

The volume of distribution (VDss) is thought high if the value is higher than 0.45. In addition, blood-brain barrier (BBB) and central nervous system (CNS) permeability standard values (>0.3 to < -1 Log BB and > -2 to < -3 Log PS), respectively. For a given compound a Log BB < -1 is poorly distributed to the brain, while Log BB >0.3 are the potential to cross BBB and LogPS > -2 considered to penetrate the CNS, while Log PS < -3 are difficult to move in the CNS [48]. It was observed that most of the compounds have the best significant potential to cross the barriers except compound (7). The enzymatic metabolism ensures the chemical biotransformation of a designed drug in the body, which played a key role in the transformation of drug compounds. In the body, drugs produce several enzymatic metabolites, which contributed to catalyzing the reaction with various drug concentrations [49]. It is essential to consider their metabolism of drugs, which showed several physicochemical and pharmacological parameters. The cytochrome P450 (CYP450) depicted a major role in drug metabolism because of the major liver enzyme system involved in phase 1 metabolism. Some selective CYP genes CYP1, CYP2, CYP3, and CYP4 families were found to be involved in drug metabolism, with CYP (1A2, 2C19, 2D6, and 3A4) being causes the biotransformation of greater than 90% of drugs undergoing phase I metabolism. Therefore, among these members, CYP3A4 is the most important inhibition in this study [50]. All newly modified compounds were found to be the substrate and the inhibitor of CYP3A4. Clearance is a constant that indicated the relationship between drug concentration in the body and the rate of elimination of the drug. Therefore, all synthesized derivatives showed a somewhat high value, but still acceptable in the persistence of the drug in the body. Moreover, it is essential to test whether if the calculated compounds are non-toxic because this plays a critical role in the selection of drugs. Besides this, all the compounds we designed are non-toxic. Overall, compounds (3-6) and (8-16) have better in silico pharmacokinetic properties.

Conclusion

In this study, we reported an easily applicable and efficient method for the synthesis of thymidine derivatives with good yields. These acylation’s were found to be very promising since in all the reactions a single mono-substitution product was isolated in reasonably high yields. The structure and purity of all the compounds were indicated by their spectral and physical data. Molecular docking has been successfully employed to determine the best antibacterials against FimH of E. coli (4XO8). Among the studied eight thymidine derivatives, compounds (6, 11, 13, and 16) showed the highest binding affinity and strong interactions with at least one of the catalytic residues (Tyr48, Tyr137, Asp140, Gln133, Phe1, Asn135, Asn23, Arg98, Lys76, Ile13, and Ile52) of the FimH 4XO8. These compounds exhibited several non-covalent interactions, such as hydrogen bonding, hydrophobic, and electrostatic interactions. These blind molecular docking analyses may provide a potential approach for the application of antibacterials drugs as expected inhibitors E. coli protein FimH (4XO8). The docking validation process revealed that RMSD is in the standard range. Visual inspection demonstrated very convincing results in the molecular docking validation process. The ADMET prediction has been shown a promising result for in silico properties which indicate that all the modified compounds have an improved pharmacokinetic profile. Therefore, it concluded that most of the selected antibacterials showed promising features and might be used to design effective antibacterial drugs against E. coli protein FimH (4XO8).

Acknowledgements

The authors are grateful to the Research and Publication Cell, University of Chittagong, Bangladesh for providing financial support to carry out this research project. The authors are grateful to the Director, Wazed Miah Science Research Centre, JU, Dhaka, Bangladesh for providing the spectra.
